Description:

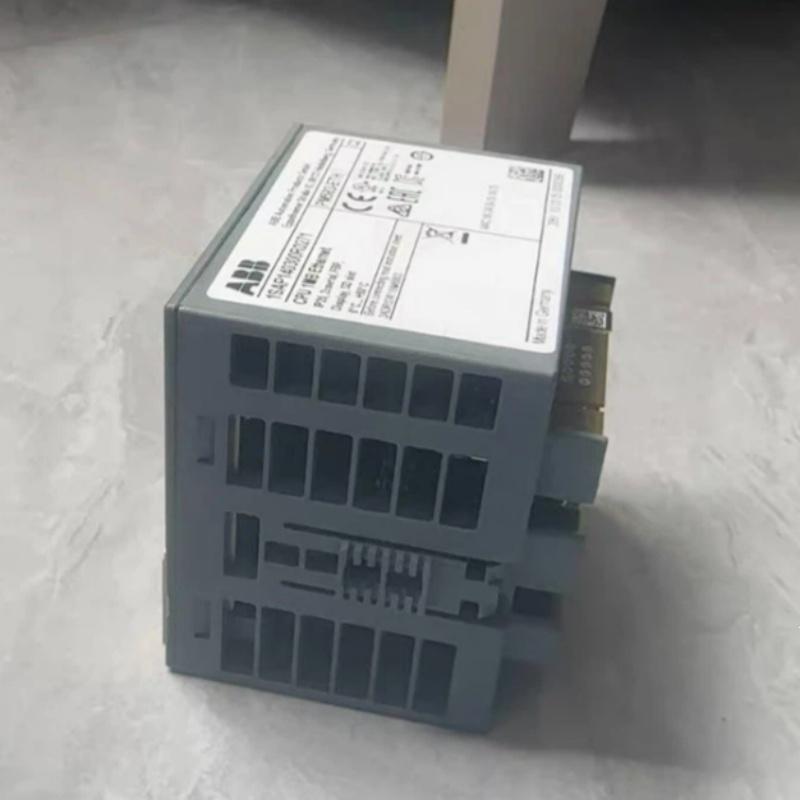

PM583-ETH is a PLC CPU module under ABB's AC500 series, designed for industrial automation control scenarios, suitable for small to medium-sized automation systems.
| Condition |
100% brand new and original |
| Warranty |
One year |
| MOQ |
1PCS |
| Delivery time |
3-5days |
Technical Specifications:
1. Core Performance
- Memory: 1MB each for user program and user data, total 2MB RAM
- Operation Speed: 0.07ms for 1k bit/word instructions, 1.6ms for floating-point operations; single-instruction short cycle time 0.05/0.06/0.5μs (word/floating-point/bit operations)
2. Power Supply & Protection
- Power Supply: Rated 24V DC, voltage range 20.4 - 28.8V DC
- Protection Class: IP20 (for clean and dry industrial environments)
3. Communication & Expansion
- Interfaces: 1 Ethernet port, 2 configurable RS232/RS485 serial ports, FBP fieldbus interface; Ethernet supports Web Server, Modbus TCP, etc.; serial ports support Modbus Master/Slave communication, etc.; COM1 integrates CS31 master function
- Expansion Capacity: Up to 10 centralized I/O modules (320 I/O points), 4 external communication modules (any combination)
4. Other Specifications
- Environment: Operating temp 0 - 60℃, storage temp -40 - 70℃
- Dimensions: 62mm×76mm×67.5mm, net weight 0.134kg; with LCD display, function keys, and SD card support for data storage & program backup
Similar models:
- PM585-ETH
- PM590-ETH
- PM591-ETH
- PM591-2ETH
- PM592-ETH
- PM595-4ETH-F
- TB511-ETH
- TB521-ETH
- TB541-ETH
- TB523-2ETH
- PM5630-2ETH
- PM5650-2ETH
- PM5670-2ETH
- PM5675-2ETH
- TB5600-2ETH
- TB5610-2ETH
- TB5620-2ETH
- TB5640-2ETH
-
FAQ
Q: Which system series does the PM583-ETH belong to, and what I/O modules is it compatible with?
A: It is part of ABB’s AC500 PLC series, compatible with AC500-series centralized I/O modules (supports up to 10 modules, 320 I/O points).
Q: Does it support third-party communication modules?
A: Priority support for ABB AC500-series external communication modules; third-party modules require compliance with Modbus TCP/RTU or FBP bus protocols for compatibility verification.
Q: What is the required power supply for the PM583-ETH?
A: Rated 24V DC, voltage range 20.4–28.8V DC; ensure stable power input to avoid operation failures.
Q: How to configure communication parameters (Ethernet/serial port)?
A: Configure via ABB’s Automation Builder software—set Ethernet IP, Modbus TCP master/slave mode, and serial port RS232/RS485 switch and baud rate.
Q: What communication protocols does it support?
A: Ethernet: Web Server, Modbus TCP; Serial ports: Modbus Master/Slave; COM1 integrates CS31 master function; FBP fieldbus is also supported.
