New Original Delta AX - 308EA PLC Controller

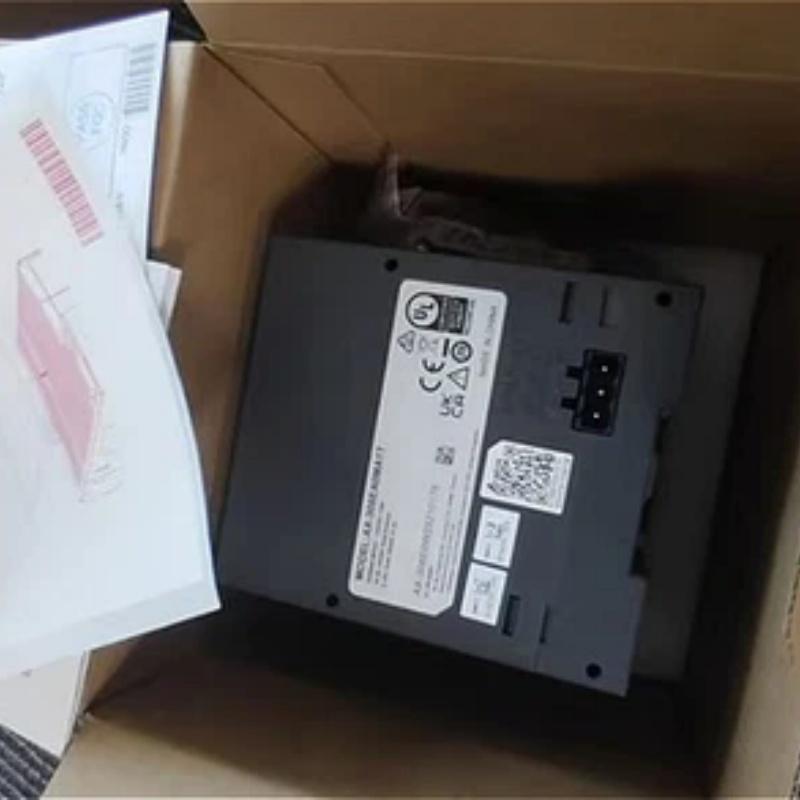

Brand New Original Packaging AX - 308EA PLC Controller.

Item NO.:
AX - 308EA
Order(MOQ):
1
Payment:
100% T/T
Product Origin:
China
Color:
As Model
Shipping Port:
Xiamen
Lead Time：
10-15 days

Inquire Now

Specifications：

Motion Control Network

EtherCAT, 100 Mbps

Synchronous Axes Performance

Up to 32 axes (including virtual axes) in total; 16 real axes with a synchronization cycle of 1ms

Electronic Cam Function

64 cam tables in total; up to 2,048 key points for a single cam table

Processor & Performance

1GHz high-speed processor; supports 64-bit floating-point (LREAL) data type operations

Program & Data Storage

Program capacity: 20MB; Variable capacity: 20MB; G-code storage: 256KB

Communication Interfaces

1 set each of USB 2.0, RS232, and RS485 for programming/serial communication; 1 CANopen port (supports DS301 master/slave); 1 Ethernet port (supports MODBUS TCP Server/Client and Ethernet/IP Adapter)

I/O Interface

Built-in 16 DI (supports external interrupts) and 8 DO; 2 incremental encoder interfaces and 1 SSI absolute encoder interface; Maximum expandable I/O points: 1,024; Maximum expandable modules: 32 (maximum 16 analog modules)

Additional Features

Built-in Mini SD card slot; Built-in RTC function (requires separate purchase and installation of a CR1620 3V battery)

FAQ

1.Q:What advantages does the AS516E's EtherCAT network offer in industrial applications?

A:The EtherCAT network of the AS516E operates at 100Mbps, enabling a 1ms synchronization cycle for 16 real axes. This high-speed data transmission capability minimizes latency between the controller and connected devices like servo drives, ensuring precise and synchronized operation of multi-axis systems. It is particularly suitable for high-speed and high-precision scenarios such as high-speed cutting machines and electronic component assembly lines.

2.Is it convenient to convert programs developed for Delta's DVP-MC series to run on the AS516E?

A: Yes, it is quite convenient. The AS516E is fully program-compatible with Delta's new-generation DVP-MC series motion control CPUs. This cross-platform compatibility allows users to quickly convert programs developed for the DVP-MC series to the AS516E without extensive modifications, reducing development cycles and costs for system upgrades or platform switching.

3.Q:What should I do if the AS516E fails to recognize the expanded I/O modules?

A: First, check if the expanded modules are AS series modules compatible with the AS516E, as incompatible modules cannot be recognized. Then verify whether the modules are installed correctly using the dedicated clasp structure. Additionally, use the ISPSoft software to check the hardware configuration; ensure the module model and quantity are correctly set in the software. If the problem persists, inspect whether the modules themselves are faulty by testing them on another normal AS516E controller.

4.Q:Can the AS516E connect and communicate with third-party industrial devices?

A:Yes. It supports third-party EtherCAT slaves (this function will be further enhanced via future firmware updates). Its Ethernet port supports MODBUS TCP and Ethernet/IP protocols, and the CANopen port complies with the DS301 standard. These features allow it to seamlessly connect and communicate with various third-party devices such as HMIs, inverters, and sensors that support corresponding protocols.

5.Q:How to implement the RTC function of the AS516E, and what should I do if the time is inaccurate?

A:The AS516E has a built-in RTC function but requires the separate installation of a commercially available CR1620 3V battery. If the time is inaccurate, first check if the battery is properly installed and has sufficient power—replace the battery if it is depleted. Then, calibrate the time through the ISPSoft configuration software. Additionally, avoid frequent power outages; if power outages occur frequently, consider configuring an external uninterruptible power supply to maintain stable power for the RTC module.
