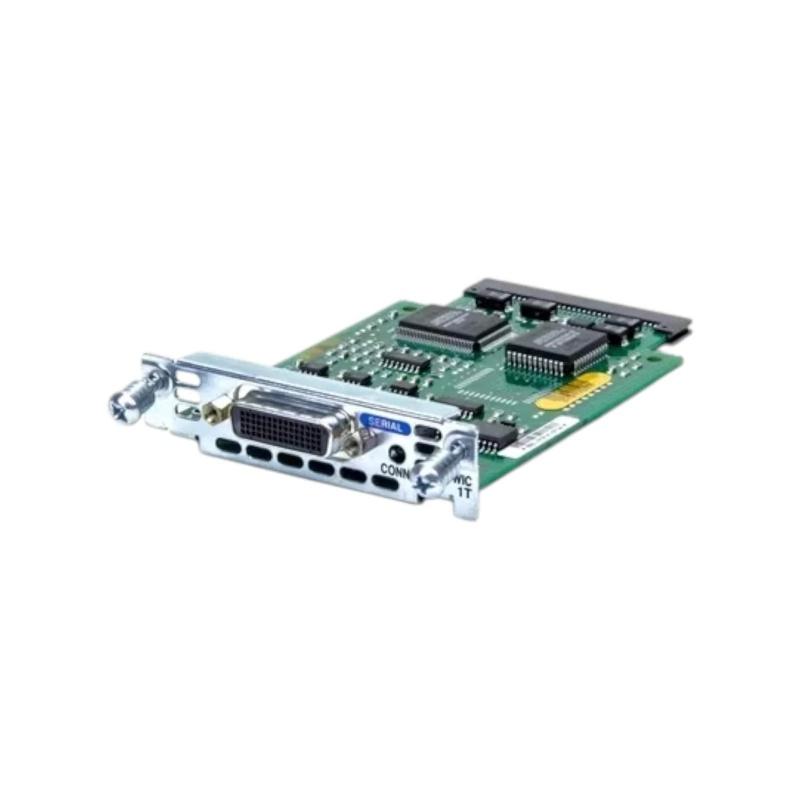

New Original CISCO WIC-1T Router Module

Description:

Specifications:

• Port Configuration	1 serial port (synchronous; async supported on select platforms)
  Max Transfer Rate	2.048 Mbps (sync); 115.2 Kbps (async, select platforms)
  Connector Type	DB-60 (compatible with V.35/RS-232/RS-449/X.21/EIA-530 via adapters)
  Supported Protocols	HDLC, PPP, Frame Relay, X.25, SNA
  Compatible Platforms	Cisco 1600/1700/1800/2600/2600XM/2691/3600/3631/3725/3745 series (IOS 12.2(13)T+ required for select models)
  Power & Dimensions	3.3V (router-powered), 1.5W; 1"×3.5"×7.5" (L×W×H); 64KB packet buffer
  Environmental Ratings	Operating Temp: 0-40°C; Storage Temp: -20-65°C,Humidity: 5%-95% (non-condensing);MTBF: 500,000 hrs; FCC Part 15 Class A

Similar Parts:

• WIC-2T
• WIC-2A/S
• WIC-1AM
• WIC-2AM
• WIC-2AM-V2

FAQ

Q:Which interface types can the WIC-1T connect to?

A:It uses a DB-60 "5-in-1" connector. With appropriate adapter cables, it supports V.35, RS-232, RS-449, X.21, and EIA-530 interfaces—covering most traditional serial device connections.

Q:Do I need a specific adapter cable for V.35/RS-232 devices?

A:Yes. Use Cisco-compatible adapter cables (e.g., V.35 DCE/DTE cables for WAN links, RS-232 cables for terminal connections) to ensure stable signal transmission.

Q: What core protocols does the WIC-1T support?

A:Data link layer: HDLC, PPP; Network layer: Frame Relay, X.25, SNA. It meets basic traditional WAN transmission needs for enterprise branches.

Q:Does it support asynchronous transmission?

A:Only on select Cisco router platforms (e.g., 2600XM, 3745). Async max rate is 115.2 Kbps; most platforms only support synchronous transmission (max 2.048 Mbps).
