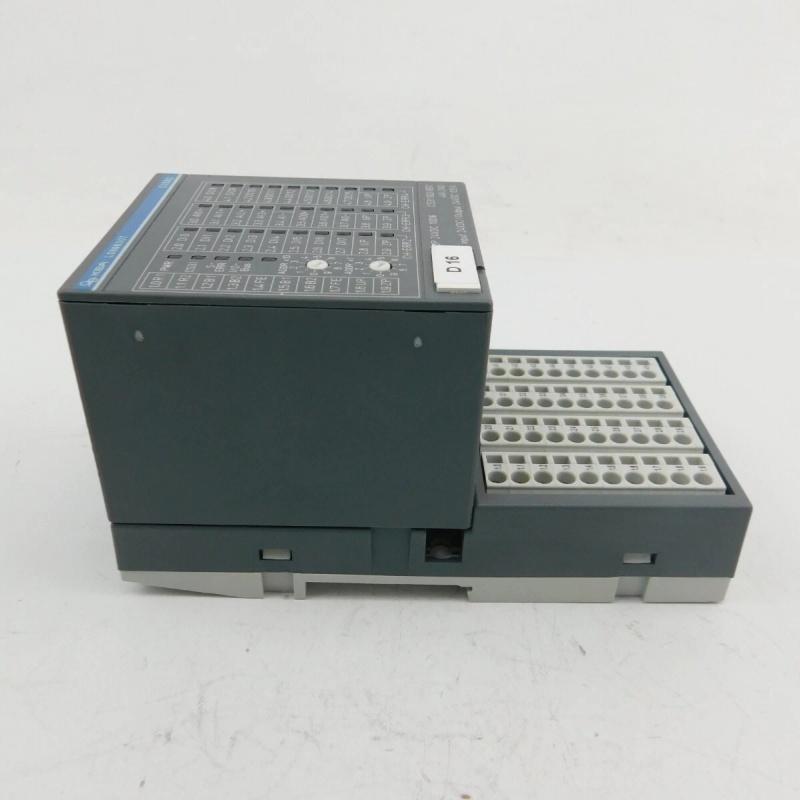

New Original ABB CI592-CS31 Module

Description:

The CI592-CS31 is a CS31 slave interface module designed by ABB for the AC500 and S500 series PLCs. Engineered for industrial automation control systems, it features a compact design and rich I/O interfaces to enable stable data exchange. With support for module expansion, this module adapts seamlessly to diverse industrial control scenarios, delivering reliable performance in complex operating environments.

Technical Specifications:

1. Supply Voltage: 24V DC (Operating Range: 20.4 - 28.8V DC)
2. Power Consumption: 5mA (when powered by 24V DC)
3. Protection Features: Reverse voltage protection; 10A fast-blow fuse for power side
4. Inrush Current: 0.040A²s
5. Maximum No-Load Power Consumption: 6W
6. Digital Interface Output Current: 0.5A
7. Hardware Counter Input Frequency: Up to 50kHz

Similar models:

• CI590-CS31-HA
• TU551-CS31
• TU552-CS31
• CI541-DP
• CI542-DP
• CI581-CN
• CI582-CN
• TU509
• TU510
• TU517
• TU518
• CI511-ETHCAT
• CI512-ETHCAT
• CI521-MODTCP
• CI522-MODTCP
• CI501-PNIO
• CI502-PNIO
• TU507-ETH
• TU508-ETH
• CI504-PNIO
• CI506-PNIO
• TU520-ETH

FAQ

1.Q:Which PLC series is the CI592-CS31 compatible with?

A:It is specifically designed for ABB AC500 and S500 series PLCs. Ensure your PLC firmware version is compatible (recommended firmware ≥ V2.0) for seamless integration.

2.Q:Can it work with third-party I/O modules?

A:No. The CI592-CS31 only supports expansion with ABB-certified I/O modules. Third-party modules may cause communication failures or system instability.

3.Q: What is the maximum communication distance of the CS31 bus?

A:Up to 1000m when using shielded twisted-pair cables (baud rate ≤ 9600 bps). For higher baud rates, reduce the distance accordingly (e.g., 500m at 38400 bps).

4.Q:Does the module have short-circuit protection?

A:Yes. It features reverse voltage protection and short-circuit protection for digital outputs. If a short circuit occurs, the module will automatically cut off the output; reset by powering off and on after troubleshooting.

5.Q:What should be noted during storage?

A:Store in a dry environment (relative humidity: 10-90%, non-condensing) with temperature -25 to +85°C.
