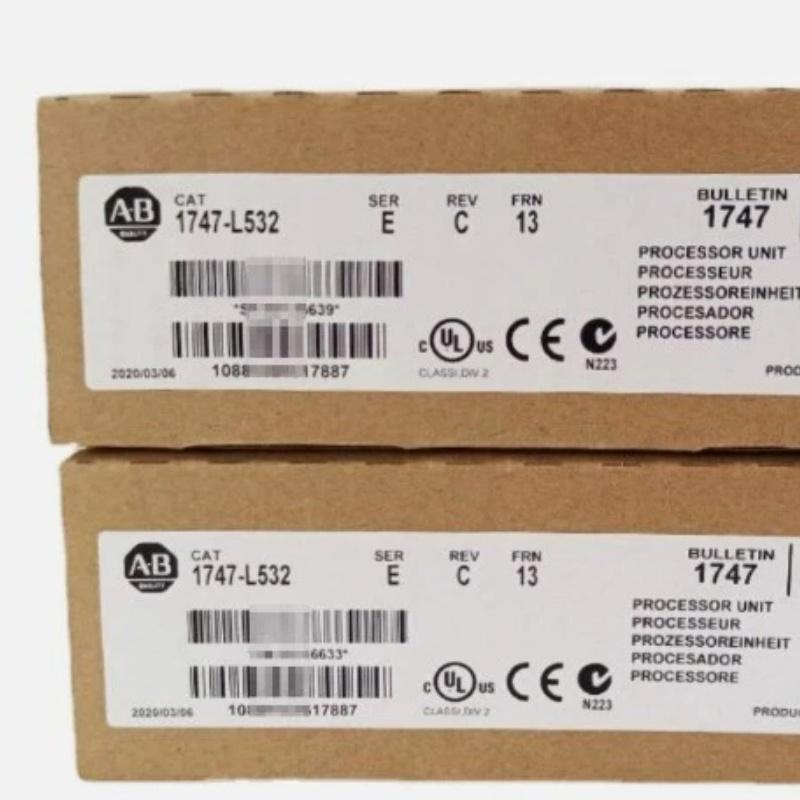

Allen-Bradley 1747-L532 Module

The Allen‑Bradley 1747‑L532 is a compact SLC 5/03 CPU processor module for the SLC 500 modular system, built for small‑to‑medium industrial control applications. It combines 16KB battery‑backed memory, dual DH‑485/RS‑232 communication ports, and robust I/O scalability (up to 4096 digital I/O points) to deliver reliable, real‑time control in manufacturing, material handling, and building automation. Though discontinued by the manufacturer (as of March 31, 2024), it remains a trusted choice for legacy system upgrades and replacements, with full backward compatibility and global compliance.

1. 16KB battery‑backed RAM user memory with Flash EEPROM backup for data retention
2. Dual built‑in DH‑485 and RS‑232 ports for flexible peer‑to‑peer and device communication
3. Supports up to 4096 digital I/O points and 480 analog I/O points for scalable system design
4. Real‑time clock/calendar, online programming, and mode‑select keyswitch for operational flexibility
5. Advanced instruction set (PID, math, messaging, FIFO/LIFO) for complex control logic
6. Industrial‑grade design with resistance to vibration, temperature fluctuations, and electromagnetic interference
7. Complies with global safety and quality standards (UL, CSA, CE, C‑TICK, KC, MARINE)

Application Scenarios:

• Manufacturing Lines: Controls assembly machines, conveyors, and quality inspection systems with real‑time I/O monitoring.
• Material Handling: Manages warehouse automation (palletizers, sorters, and inventory sensors) via reliable DH‑485/RS‑232 communication.
• Building Automation: Integrates HVAC, lighting, and security systems for centralized facility control.
• Process Control: Supports small‑scale chemical, food & beverage, and water treatment processes with PID and advanced math functions.
• Legacy System Upgrades: Seamlessly replaces older SLC 500 processors while preserving existing I/O and programming.
