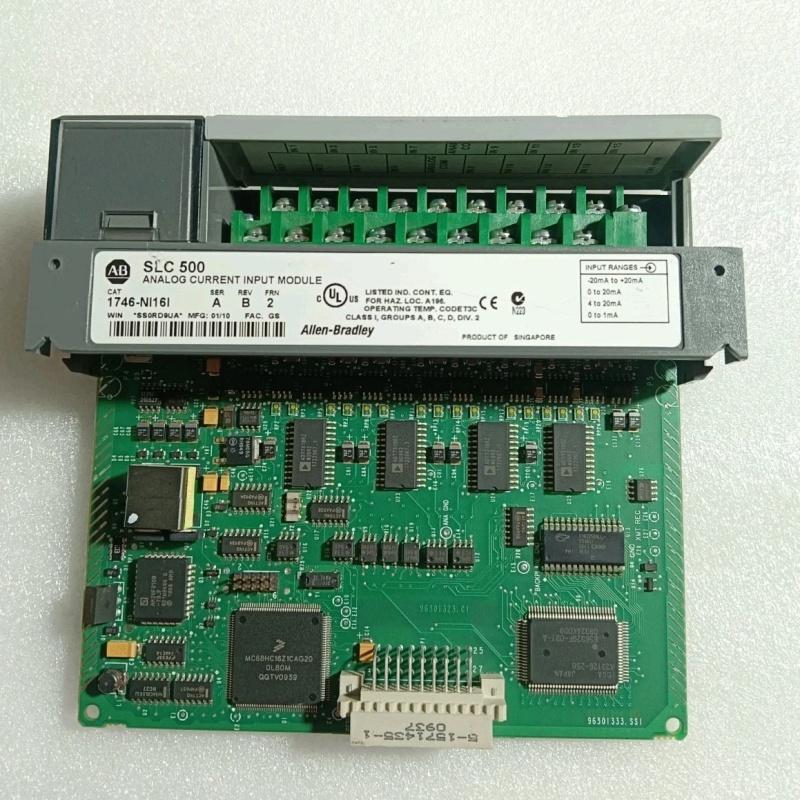

Allen-Bradley 1746-NI16I Module

The Allen-Bradley 1746-NI16I is a 16-channel, 16-bit analog current input module designed for SLC 500 PLC systems, enabling precise acquisition of 4-20 mA, 0-20 mA, ±20 mA, and 0-1 mA signals from industrial transmitters, sensors, and process instruments in manufacturing, process control, and energy management applications requiring high-density, reliable analog data capture for closed-loop control and monitoring.

1. 16 Configurable Current Input Channels: Supports multiple industry-standard current ranges to interface with pressure, flow, level, and temperature transmitters, eliminating signal converters and simplifying integration.
2. 16-Bit Resolution: Delivers 65,536 discrete values for precise measurement and control, ideal for applications demanding tight tolerance and accurate feedback.
3. Programmable Digital Filtering: 8 selectable low-pass filter frequencies (6–250 Hz) to balance noise immunity and response time, optimizing signal stability in noisy industrial environments.

Application Areas:

1. Process control (pressure, flow, level, temperature transmitter monitoring)
2. Manufacturing automation (closed-loop control for robotic cells, conveyor speed regulation)
3. Energy management (current monitoring for motor load, power consumption tracking)
4. Water/wastewater treatment (flow meter, level sensor, and pump current feedback)
5. Oil/gas processing (pressure and temperature transmitter signal acquisition)
6. Pharmaceutical production (precision batch control via analog sensor feedback)
7. Building automation (HVAC system current monitoring and energy optimization)
